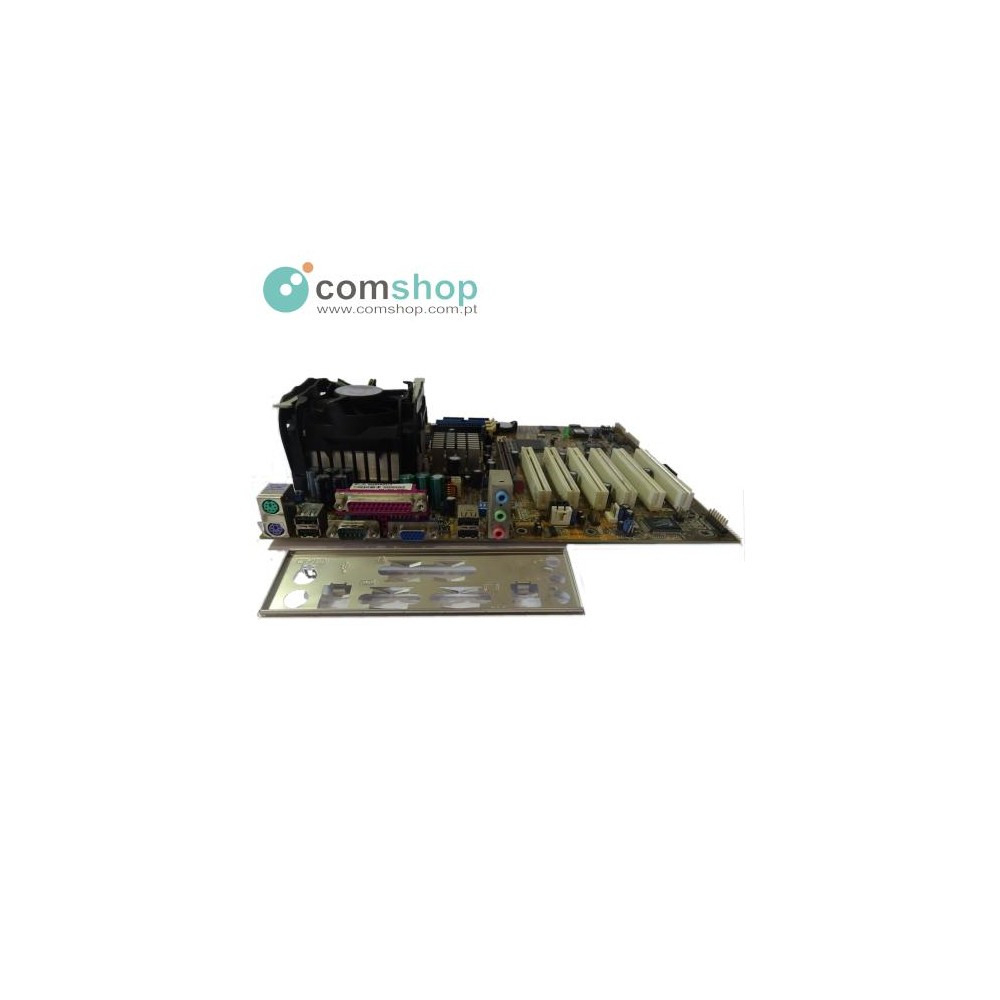

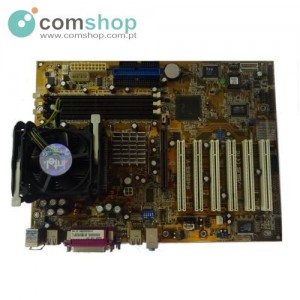

Motherboard with CPU and Cooler Asus P4B533-V

Motherboard with CPU and Cooler Asus P4B533-V

Product Type: Motherboard - ATX
Interface Type: AGP
Chipset Type: Intel 845G, Intel 845G
Compatible Processors: Pentium 4
Processor Socket: 478
Max Bus Speed: 533 MHz
Qty Max Processors: 1

Interface Type
ATA-100

EXPANSION / CONNECTIVITY
Interfaces
1 x microphone - mini-jack
6 x USB 2.0
1 x parallel
1 x serial
1 x PS/2 mouse
1 x PS/2 keyboard
1 x gameport / MIDI - generic - 15 pin D-Sub (DB-15)
1 x LAN
1 x VGA
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack

Expansion Slot(s)
1 x CPU
3 x DIMM 184-pin
6 x PCI
1 x AGP 4x (1.5V)

Storage Interfaces
ATA-100 - connector(s): 2 x 40pin IDC, ATA-100 - connector(s): 2 x 40pin IDC
Internal Interfaces
1 x floppy

PROCESSOR
Max Supported Qty: 1

INTERFACE PROVIDED
Type: gameport / MIDI, gameport / MIDI

Connector Type
15 pin D-Sub (DB-15), 15 pin D-Sub (DB-15)
Type

LAN, serial, audio line-out, PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-in, audio line-out, microphone, parallel
Connector Type
mini-jack, mini-jack, mini-jack, mini-jack, mini-jack

PROCESSOR / MEMORY / STORAGE
Max Supported Qty: 1

Networking
Data Link Protocol
Ethernet, Fast Ethernet

Audio
Audio Codec
IMC8738, Cmi8738

VIDEO
Video Output
graphics adapter
Graphics Processor
Intel Extreme Graphics

AUDIO OUTPUT
Signal Processor
IMC-8738
sound card
Form Factor
integrated
Audio Codec
IMC8738

Graphics
Graphics Controller
Intel Extreme Graphics, Intel Extreme Graphics
Memory Allocation Technology
Shared video memory (UMA), Shared video memory (UMA)

SUPPORTED RAM
Max Supported Size: 2 GB DDR
Bus Clock
266 MHz, 200 MHz, 266 MHz, 200 MHz
Speed
PC2100, PC1600, PC2100, PC1600

Lan
Network Interfaces
Ethernet, Ethernet

Mainboard
Form Factor: ATX
Processor Socket: 478
Compatible Processors: Pentium 4
Data Bus Speed: 533 MHz
Chipset Type: Intel 845G
Supported RAM: DDR SDRAM
Supported RAM Speed: 200 MHz, 266 MHz
Supported RAM Standard: PC1600, PC2100

MAINBOARD FEATURES
BIOS Type
Award
BIOS Features
ACPI support, ASUS MyLogo2, DMI 2.0 support, JumperFree, Multilingual BIOS, WfM 2.0 support, power failure recovery (AC loss resume)
Sleep / Wake Up
keyboard wake up, mouse wake up, suspend to RAM (STR), wake on LAN (WOL), wake on PCI device, wake on USB port, wake on modem (WOM), wake on ring (WOR)
Manual Settings
CPU frequency
Hardware Monitoring
CPU core temperature, CPU core voltage, CPU fan tachometer, chassis fan tachometer, chassis temperature, power supply fan tachometer, power supply temperature, system voltage
Hardware Features
ASUS POST Reporter, ASUS Q-Fan, EZ Plug, chassis intrusion detection

EXPANSION SLOTS
STORAGE INTERFACES
Interface
ATA-100
Connector(s)
2 x 40pin IDC - Chapinha
